BiBiGrid Hands-on

Prerequisites

  • System base on Linux, OSX (tested) or Windows Subsystem for Linux (untested)
  • required software packages
  • Python >= 3.10
  • git (required)
  • openssh
  • Openstack API access

Clone bibigrid and bibigrid_clum

git clone https://github.com/BiBiServ/bibigrid.git
git clone https://github.com/deNBI/bibigrid_clum.git

Your bibigrid folder should contain:

$ ls bibigrid
# bibigrid  bibigrid_rest.sh  bibigrid.sh  bibigrid.yaml  documentation  README.md  requirements-dev.txt  requirements-rest.txt  requirements.txt  resources  tests

Learning Goals and Expectations

The goal of this tutorial is to set up a small HPC cluster consisting of 3 nodes (1 master, 2 on demand workers) using BiBiGrid with Slurm (workload manager), Network File System (allows file sharing between servers) and Theia (Web IDE). This setup will be tested by running a simple Nextflow workflow. This tutorial targets users that plan to run BiBiGrid on de.NBI cloud.

  1. Preparation
  2. Configuration
  3. The Cluster

Preparation

Premade Template

Use the prefilled configuration template resources/bibigrid.yaml as a basis for your personal BiBiGrid configuration. Later in this tutorial you will use OpenStackClient or access Openstack's dashboard manually to get all necessary configuration information from your project.

Copy the configuration template to ~/.config/bibigrid/.

mkdir ~/.config/bibigrid
cp bibigrid_clum/resources/bibigrid.yaml ~/.config/bibigrid/bibigrid.yaml

This premade template includes volume keys for both master and worker giving you a permanent volume for your master that is shared via nfs (see nfsShares) and one semipermanent volume for each worker. Each volume has 25 GB.

Authentication

In this section you will create an application credential and download the autogenerated clouds.yaml. clouds.yaml contains all required authentication information. Follow the images:

Navigation

Don't use the input field secret. - Its input is not hidden - OpenStack will generate a strong secret for you, if you leave it blank.

Pick a sensible expiration date.

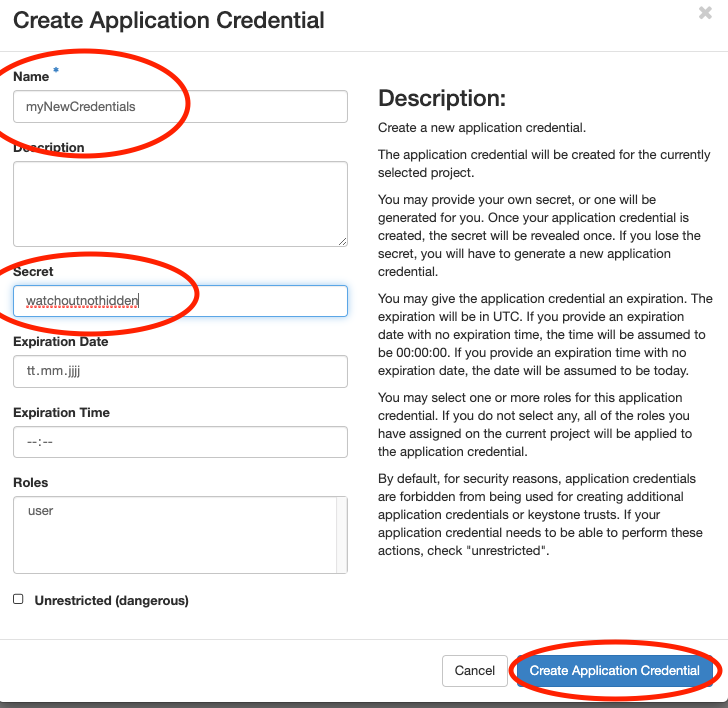

Creation

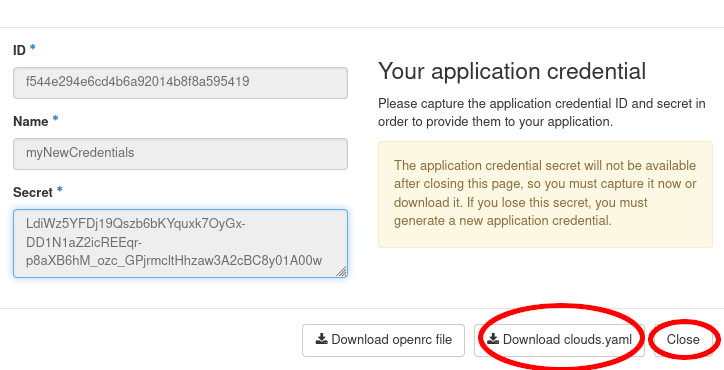

Download

Save the downloaded clouds.yaml under ~/.config/openstack/ and ~/.config/bibigrid/. That will allow both OpenstackClient and BiBiGrid to access it:

cp ~/Downloads/clouds.yaml ~/.config/bibigrid/clouds.yaml
mkdir ~/.config/openstack
cp ~/Downloads/clouds.yaml ~/.config/openstack/clouds.yaml

Why not store BiBiGrids `clouds.yaml` in openstack and avoid the extra copy? In the future BiBiGrid will support more than just one cloud infrastructure. Therefore, using the `~/.config/openstack` folder would be a disadvantage later.

Virtual Environment

A virtual environment is something that gives you everything you need to run specific programs without altering your system.

Creating a Virtual Python Environment

python3 -m venv ~/.venv/bibigrid

If this command fails, you probably need to install python3-venv manually. For that first update sudo apt update && sudo apt upgrade and then sudo apt install python3.??-venv (use the correct version for your system).

Sourcing Environments

In order to actually use the virtual environment we need to source that environment:

source ~/.venv/bibigrid/bin/activate

Following pip installations will only affect the virtual environment. The virtual environment is only sourced in the terminal where you executed the source command. Other terminals are not affected.

Fulfilling Requirements

Now let's move into the bibigrid folder cd bibigrid we will stay in it unless explicitly mentioned otherwise.

You will now install packages required by BiBiGrid within your newly created virtual environment. If you haven't sourced your environment yet, please go back. To install all BiBiGrid requirements, we simply install from the given requirements file:

pip install -r requirements.txt

Try executing openstack subnet list --os-cloud=openstack within this environment. If it runs without errors, you are ready to proceed. Otherwise you need to check your clouds.yaml and your virtual environment.

Configuration

Following the next steps you will update the premade template.

Why are some keys in the template already set? In this hands-on, we want to make things as easy as possible for you. Just check whether the key you've found is the correct one and matches with the one we've written down in the configuration file already.

SSH access information

BiBiGrid needs to know which sshUser to use in order to connect to your master. You can set this key in your ~/.config/bibigrid/bibigrid.yaml file.

The sshUser depends on your server image. Since we run on top of Ubuntu 22.04 the ssh-user is ubuntu. Set the template's sshUser key to ubuntu.

Network

If you have your own project and would like to create a subnet, take a look at the OpenStack Quickstart from de.NBI Cloud Wiki. Depending on your cloud location, steps might slightly differ.

Once you have a subnet, determine your subnet's Name by running:

openstack subnet list --os-cloud=openstack

Set the template's subnet key to the result's Name key.

Instances

BiBiGrid needs to know type and image for each server. Since those are often identical for the workers, you can simply use the count key to indicate multiple workers with the same type and image.


Images are virtual disks with a bootable operating system. Choosing an image means choosing the operating system of your server.

Since images are often updated, you need to look up the current active image using:

openstack image list --os-cloud=openstack | grep active

Since we will use Ubuntu 22.04 you might as well use:

openstack image list --os-cloud=openstack | grep active | grep "Ubuntu 22.04"

Set the template's image key of all instances to the result's ID or NAME entry of the Ubuntu 22.04 row. All servers will share the same image.

Do I have to update my configuration file whenever there is a new image version? If you use the method described above, yes. However, you can also use a regex instead of a specific name to select an image during runtime. This has also avoids issues that may arise whenever an image is deactivated while your cluster is still running. For our Ubuntu 22.04 images you could use `^Ubuntu 22\.04 LTS \(.*\)$`, but usually you need to check what image names are available at your location and choose the regex accordingly. For more information on this functionality take a look at BiBiGrids [full documentation](https://github.com/BiBiServ/bibigrid/blob/master/documentation/markdown/features/configuration.md#using-regex).

Flavor

Flavors are available hardware configurations.

The following gives you a list of all flavors:

openstack flavor list --os-cloud=openstack

Set the template's flavor keys (provide an ID or NAME - we will use NAME in the following examples) to flavors of your choice - in this tutorial we will use de.NBI medium for our master and de.NBI small for our two workers. You can use a different flavor for the master and each worker-group.

Example: Multiple worker groups The key `workerInstances` expects a list. Each list element is a `worker group` with an `image` + `type` combination and a `count`. In our tutorial we use a single worker group containing two workers. Since they are in the same worker group, they are identical in flavor and image. We could, however, define two worker groups with one worker each in order to use different flavors for them.
workerInstances:
  - type: de.NBI tiny
    image: ubuntu-22.04-image-name
    count: 1
  - type: de.NBI default
    image: ubuntu-22.04-image-name
    count: 1

Waiting for post-launch Services

Some clouds run one or more post-launch services on every started instance, to finish the initialization after an instance is available (e.g. to configure local proxy settings or local available repositories). That might interrupt BiBiGrid setting up the node (via Ansible). Therefore, BiBiGrid needs to wait for your post-launch service(s) to finish. For that BiBiGrid needs the services' names. Set the key waitForServices to the list of services you would like to wait for. For Bielefeld this would be de.NBI_Bielefeld_environment.service. In the future you should be able to find post-launch service names by taking a look at your location's Wiki site (Computer Center Specific) - if post-launch services exist at your location.

  waitForServices:
    - de.NBI_Bielefeld_environment.service

Jump Hosts

If you have to use a Jump Host or your started machines are for other reasons not able to reach your Openstack Provider, use onDemand: False to disable the on demand scheduling. When on demand scheduling is active, worker instances power up whenever they are needed and power down when they are no longer used. This is very valuable because it allows clouds to oversubscribe resources which leads to more resources for everyone.

However, if your master is unable to communicate with your cloud's openstack api, on demand scheduling is not possible. For that we need to disable it.

workerInstances:
  - type: de.NBI tiny
    image: ubuntu-22.04-image-name
    count: 1
    onDemand: False
  - type: de.NBI default
    image: ubuntu-22.04-image-name
    count: 1
    onDemand: False

If you are unsure whether you have to use a Jump Host or if the connection is not possible, take a look at your location's Wiki site (Computer Center Specific).

Check Your Configuration

Run ./bibigrid.sh -i bibigrid.yaml -ch -v to check your configuration. The command line argument -v allows for greater verbosity which will make it easier for you to fix issues.

The Cluster

The most important folders to know are: - /vol/spool -> shared filesystem between all nodes - Additional folders you created to mount your volumes as described by your configuration. In this tutorial /vol/permanent on the master and /vol/semipermanent on the workers.

Some more interesting folders You do not need to know more about them for regular BiBiGrid use. - `/opt/bibigrid-venv` -> python venv for all bibigrid python scripts on the cluster and ansible - `/opt/playbook` -> bibigrid's ansible playbook - `/opt/slurm` -> where create, fail, terminate scripts and node initialization userdata are stored - `/var/log/slurm` -> where slurm stores all log files - `/var/log/slurm/worker_logs` -> contains (ansible) runs separately for each create call

Starting the cluster

./bibigrid.sh -i bibigrid.yaml -c -vv creates the cluster with a verbose verbose output - great for us to see what's happening. Cluster creation time depends on the chosen flavor and the overall load of the cloud and will take up to 15 minutes.

List Running Cluster

Since several clusters can run simultaneously in a single project, listing all running clusters can be useful:

Execute ./bibigrid.sh -i bibigrid.yaml -l. You will receive a general overview of all clusters running in your project.

Cluster SSH Connection

After a successful setup, BiBiGrid will print some information. For example:

Cluster 6jh83w0n3vsip90 with master 123.45.67.890 up and running!
SSH: ssh -i '~/.bibigrid/tempKey_bibi-6jh83w0n3vsip90' ubuntu@123.45.67.890
Terminate cluster: ./bibigrid.sh -i 'bibigrid.yaml' -t -cid 6jh83w0n3vsip90
Detailed cluster info: ./bibigrid.sh -i 'bibigrid.yaml' -l -cid 6jh83w0n3vsip90

You can now establish an SSH connection to your cluster's master by executing the SSH line of your create's output:

ssh -i '~/.bibigrid/keys/tempKey_bibi-6jh83w0n3vsip90' ubuntu@123.45.67.890
But make sure to use the one generated for you by BiBiGrid since

  • cluster-id (here 6jh83w0n3vsip90),
  • key name (here ~/.config/bibigrid/keys/tempKey_bibi-6jh83w0n3vsip90)
  • user@IP (here ubuntu@123.45.67.890)

will differ on every run. Run sinfo after logging in. You should see something like this:

PARTITION AVAIL  TIMELIMIT  NODES  STATE NODELIST
openstack    up   infinite      2  idle~ bibigrid-worker-6jh83w0n3vsip90-[0-1]
openstack    up   infinite      1   idle bibigrid-master-6jh83w0n3vsip90
All*         up   infinite      2  idle~ bibigrid-worker-6jh83w0n3vsip90-[0-1]
All*         up   infinite      1   idle bibigrid-master-6jh83w0n3vsip90
Why are there two partitions (openstack and all) with the same nodes? BiBiGrid creates one partition for every cloud (here `openstack`) and one partition called `all` containing all nodes from all partitions. Since we are only using one cloud for this tutorial, we only have `openstack` and `all`.

However, dealing with the cluster from just a terminal can be quite bothersome. That's were Theia Web IDE comes in. Log out of your ssh connection for now.

Using Theia Web IDE

Theia Web IDE's many features make it easier to work on your cloud instances. Take a look:

Theia

When enabled, Theia Web IDE is configured to listen on localhost port 8181 on the master instance. Since this address is not directly available you have to forward it to your machine using ssh. However, BiBiGrid handles that for you. Simply execute

./bibigrid.sh -i bibigrid.yaml -ide -cid [cluster-id]

to connect to Theia. A Theia IDE tab will be automatically opened in your browser. You could have omitted -cid [cluster-id]. If no -cid is given, BiBiGrid will attempt to connect to your last created cluster.

Hello BiBiGrid, Hello Antibiotic Resistance!

In this section, you will execute the resFinder workflow to create a heatmap of antibiotic resistances using your cluster. We will only focus on the workflow language Nextflow within this tutorial. However, you could use any software that comes with a SLURM executor instead or even run the jobs directly through SLURM's CLI.

Digression: Job Scheduling (SLURM) [Slurm](https://slurm.schedmd.com/) is used for job scheduling/workload management. To see all nodes in your cluster execute `sinfo`. You will notice that workers are `idle~`. That means they are `idle` and `~` (powered down). Slurm uses many symbols and words to indicate node states. See [here](https://slurm.schedmd.com/sinfo.html#SECTION_NODE-STATE-CODES) for more about that. To see all running jobs, execute `squeue`. You will notice that no job is currently running. After successfully connecting to Theia IDE, we will now run our first job on our cluster. Let's start with a "hello world". - Open a terminal - Create a new shell script `nano /vol/spool/helloworld.sh`:
#!/bin/bash
echo Hello from $(hostname) !
sleep 10
- Make `helloworld.sh` executable using [chmod](https://linux.die.net/man/1/chmod): `chmod u+x /vol/spool/helloworld.sh` - Change into the /vol/spool/ directory: `cd /vol/spool/` - Submit this script as an array job 50 times : `sbatch --array=1-50 --job-name=helloworld helloworld.sh` (run the job 50 times). The job `helloworld` runs now. It will take a while to finish, but you can already inspect some information while it runs. - The master will now power up worker nodes (as you described it in `bibigrid.yaml`) to assist him with this job. Execute `sinfo` after a few seconds to see the current node status. - View information about all scheduled jobs by executing `squeue`. You will see your job `helloworld` there. - You can see `helloworld`'s output using [cat](https://linux.die.net/man/1/cat) `cat /vol/spool/slurm-*.out`.

Setting up nextflow

Install Java

sudo apt install default-jre

Download Nextflow into your /vol/permanent folder

cd /vol/permanent
wget -qO- https://get.nextflow.io | bash

Get and execute resFinder

Execute locally in this repository's folder in order to copy our test workflow to the master; use your own key path (here 6jh83w0n3vsip90) and master ip (here 123.45.67.890)

scp -i '~/.config/bibigrid/keys/tempKey_bibi-6jh83w0n3vsip90' resources/Resistance_Nextflow.tar.xz ubuntu@123.45.67.890:/vol/permanent/Resistance_Nextflow.tar.xz

Execute on remote within /vol/permanent in order to unpack our workflow and run it on the master.

tar -xvf Resistance_Nextflow.tar.xz
./nextflow run resFinder.nf

Using squeue in another terminal will show you that this execution is not running on our slurm cluster.

On Slurm

In order to run our workflow on our slurm cluster, we need to set the executor to slurm. We have done that using a profile definition (see nextflow.config).

./nextflow run resFinder.nf -profile slurm

Once our workflow has finished, we can see the generated heatmap in outputs/collected_heatmaps/.

Ansible - Let's Automate

Ansible, an open source community project by Red Hat, enables the idempotent setup of servers - installing software you need and so on. Knowing more about Ansible can be very helpful when handling clusters.

Let's automate our setup using Ansible! We have already prepared most of it in our generel user_role example. To include the user role resistance_nextflow at ~/playbook/roles_user. Open ~/playbook/site.yaml and add resistance_nextflow to the hosts: master section:

- become: 'yes'
  hosts: master
  roles:
  - role: bibigrid
    tags:
    - bibigrid
    - bibigrid-master
  - role: resistance_nextflow
    tags:
    - resfinder
    become: False
  vars_files:
  - vars/common_configuration.yaml
  - vars/hosts.yaml

Next, we need to change our paths from /vol/spool to /vol/permanent given that we would like to store the workflow and its outputs on our permanent volume.

- debug:
    msg:
    - "Hello {{ ansible_user }}!"

- name: Unarchive ZIP file from GitHub repository
  unarchive:
    src: "https://github.com/deNBI/bibigrid_clum/raw/main/resources/Resistance_Nextflow.tar.xz"
    dest: "/vol/permanent/"
    remote_src: yes

- name: Install Java JRE on Debian/Ubuntu
  become: True
  apt:
    name: default-jre  # Package name for Java JRE on Debian-based systems
    state: present     # Ensure that the package is present, you can use "latest" as well

- name: Get Nextflow
  shell: wget -qO- https://get.nextflow.io | bash
  args:
    chdir: /vol/permanent/

And let's execute our role, but first we need to remove everything we have done manually to ensure that our role actually works (for simplicity we will not uninstall java):

sudo rm -r /vol/permanent/* # in order to reset
bibiplay -t resfinder # bibiplay is a short-form for roughly "ansible-playbook path-to-site.yaml -i path-to-ansible-hosts"

Taking a look at /vol/permanent/, we can see that the output folder has been generated once again.

Terminate a cluster

Execute ./bibigrid.sh -i bibigrid.yaml -t -cid [cluster-id] -v. ./bibigrid.sh -i bibigrid.yaml -t also does the trick, since BiBiGrid will fall back on your last created cluster if no cluster-id is specified.

Moving Forward

More BiBiGrid

Congratulations! You have finished BiBiGrid's Hands-on.

You may want to take a look at the "real" bibigrid.yaml inside BiBiGrid's repository. It has a lot more options. However, everything you learned here stays true.

If you would like to deepen your knowledge maybe give BiBiGrid's Features (e.g. create, check, update, ...) or the Software (e.g. Slurm, Ansible, Zabbix, Theia, ...) used by BiBiGrid a read. If you would like to know more about the configuration file see Configuration.

More Ansible

You can learn more about Ansible here: - de.NBI Wiki Ansible Tutorial - clum2022-ansible - Getting started with Ansible - Ansible Galaxy
